ISO Standard SS Double Pitch Conveyor Chains

We have a full line of high-quality double pitch roller chains ranging from ANSI to ISO and DIN standards, materials, configurations, and quality levels. We stock these chains in 10ft boxes, 50ft reels, and 100ft reels on some sizes, we can also supply custom cut to length strands upon request.Carbon steel material is avilable.

Send email to us Download as PDF

Product Detail

Product Tags

SS Double Pitch Conveyor Chains01

Double pitch conveyor chain

GL Chain No		Pitch	Roller Diameter	Width Between Inner Plates	Pin Diameter	Pin Length		Inner Plate Height	Plate Thickness	Ultimate Tensile Strength	Weight Per Meter
		P	d1	b1	d2	L	Lc	h2	T	Q	q
		P	max	min	max	max	max	max	max	min	q
ISO	ANSI	mm	mm	mm	mm	mm	mm	mm	mm	KN	Kg/m
SSC208A	SSC2040	25.400	7.95	7.85	3.96	16.60	17.80	12.00	1.50	9.87	0.50
SSC208AL	SSC2042	25.400	15.88	7.85	3.96	16.60	17.80	12.00	1.50	9.87	0.84
SSC208AH	SSC2040H	25.400	7.95	7.85	3.96	18.80	19.90	12.00	2.03	9.87	0.65
SSC208B		25.400	8.51	7.75	4.45	16.70	18.20	11.80	1.60	12.06	0.55
SSC208BL		25.400	15.88	7.75	4.45	16.70	18.20	11.80	1.60	12.06	0.89
SSC210A	SSC2050	31.750	10.16	9.40	5.08	20.70	22.20	15.00	2.03	15.54	0.78
SSC210AL	SSC2052	31.750	19.05	9.40	5.08	20.70	22.20	15.00	2.03	15.54	1.27
SSC212A	SSC2060	38.100	11.91	12.57	5.94	25.90	27.70	18.00	2.42	22.26	1.12
SSC212AL	SSC2062	38.100	22.23	12.57	5.94	25.90	27.70	18.00	2.42	22.26	1.61
SSC212AH	SSC2060H	38.100	11.91	12.57	5.94	29.20	31.60	18.00	3.25	22.26	1.44
SSC212AHL	SSC2062H	38.100	22.23	12.57	5.94	29.20	31.60	18.00	3.25	22.26	2.07
SSC216A	SSC2080	50.800	15.88	15.75	7.92	32.70	36.50	24.00	3.25	39.69	2.08
SSC216AL	SSC2082	50.800	28.58	15.75	7.92	32.70	36.50	24.00	3.25	39.69	3.12
SSC216AH	SSC2080H	50.800	15.88	15.75	7.92	36.20	39.40	24.00	4.00	39.69	2.54
SSC216AHL	SSC2082H	50.800	28.58	15.75	7.92	36.20	39.40	24.00	4.00	39.69	3.58
SSC220A	SSC2100	63.500	19.05	18.90	9.53	40.40	44.70	30.00	4.00	61.95	3.01
SSC220AL	SSC2102	63.500	39.67	18.90	9.53	40.40	44.70	30.00	4.00	61.95	4.83
SSC220AH	SSC2100H	63.500	19.05	18.90	9.53	43.60	46.90	30.00	4.80	61.95	3.56
SSC220AHL	SSC2102H	63.500	39.67	18.90	9.53	43.60	46.90	30.00	4.80	61.95	5.38
SSC224A	SSC2120	76.200	22.23	25.22	11.10	50.30	54.30	35.70	4.80	72.50	4.66
SSC224AL	SSC2122	76.200	44.45	25.22	11.10	50.30	54.30	35.70	4.80	72.50	7.66
SSC224AH	SSC2120H	76.200	22.23	25.22	11.10	53.50	57.50	35.70	5.60	72.50	5.26
SSC224AHL	SSC2122H	76.200	44.45	25..22	11.10	53.50	57.50	35.70	5.60	72.50	8.26
SSC232A	SSC2160	101.600	28.58	31.75	14.27	64.80	69.60	47.80	6.40	118.68	8.15
SSC232AL	SSC2162	101.600	57.15	31.75	14.27	64.80	69.60	47.80	6.40	118.68	13.00
SSC232AH	SSC2160H	101.600	28.58	31.75	14.27	68.20	73.00	47.80	7.20	118.68	9.06
SSC232AHL	SSC2162H	101.600	57.15	31.75	14.27	68.20	73.00	47.80	7.20	118.68	12.77

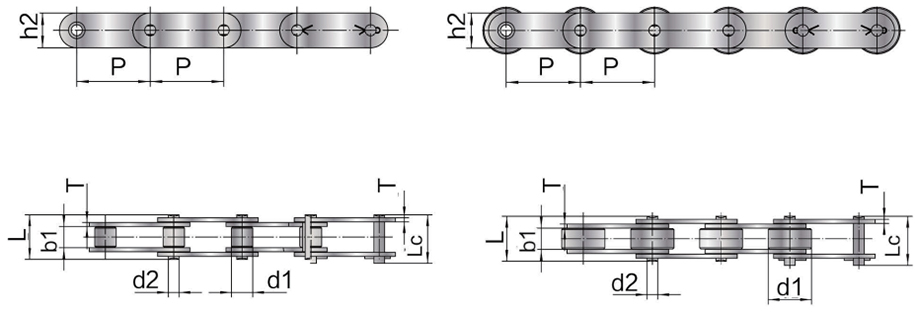

SS Double Pitch Conveyor Chains02

GL Chain No		Pitch	Roller Diameter	Width Between Inner Plates	Pin Diameter	Pin Length		Inner Plate Height	Plate Thickness	Ultimate Tensile Strength	Weight Per Meter
		P	d1	b1	d2	L	Lc	h2	T	Q
			max	min	max	max	max	max	max	min	q
ISO	ANSI	mm	mm	mm	mm	mm	mm	mm	mm	KN	Kg/m
SSC216AHL	SSC2082H	50.800	28.58	15.75	7.92	36.20	39.20	24.10	4.00	39.20	3.58
SSC220A	SSC2100	63.500	19.05	18.90	9.53	40.30	443.00	30.20	4.00	60.20	3.01
SSC220AL	SSC2102	63.500	39.67	18.90	9.53	40.30	43.00	30.20	4.00	60.20	4.83
SSC220AH	SSC2100H	63.500	19.05	18.90	9.53	43.60	46.85	30.20	4.80	60.20	3.56
SSC220AHL	SSC2102H	63.500	39.67	18.90	9.53	43.60	46.85	30.20	4.80	60.20	5.38
SSC224A	SSC2120	76.200	22.23	25.22	11.10	50.30	54.30	36.10	4.80	93.00	4.66
SSC224AL	SSC2122	76.200	44.45	25.22	11.10	50.30	54.30	36.10	4.80	93.00	7.66
SSC224AH	SSC2120H	76.200	22.23	25.22	11.10	53.80	56.90	36.10	5.60	93.00	5.26
SSC224AHL	SSC2122H	76.200	44.45	25..22	11.10	53.80	56.90	36.10	5.60	93.00	8.26
SSC232A	SSC2160	101.600	28.58	31.75	14.27	65.50	69.00	48.00	6.40	118.68	8.15
SSC232AL	SSC2162	101.600	57.15	31.75	14.27	65.50	69.00	48.00	6.40	118.68	13.00
SSC232AH	SSC2160H	101.600	28.58	31.75	14.27	68.50	72.35	48.00	7.20	118.68	9.06
SSC232AHL	SSC2162H	101.600	57.15	31.75	14.27	68.50	72.35	48.00	7.20	118.68	12.77

SS Double Pitch Conveyor Chains03

Double pitch coveyor chain with extended pin

GL Chain No		P	d2	L3	L	Lc
		mm	mm	mm	mm	mm
ISO	ANSI
SSC208A SSC208AL	SSC2040 SSC2042	25.400	3.96	9.50	25.10	26.20
SSC210A	SSC2050	31.750	5.08	11.90	31.30	33.10
SSC210AL	SSC2052
SSC212A SSC212AL	SSC2060 SSC2062	38.100	5.94	14.30	38.60	40.60
SSC212AH	SSC2060H	38.100	5.94	14.30	42.00	43.80
SSC212AHL	SSC2062H
SSC216A SSC216AL	SSC2080 SSC2082	50.800	7.92	19.10	50.30	53.30
SSC216AH	SSC2080H	50.800	7.92	19.10	53.50	55.00
SSC216AHL	SSC2082H
SSC220A SSC220AL	SSC2100 SSC2102	63.500	9.53	23.80	61.80	66.10
SSC220AH	SSC2100H	63.500	9.53	23.80	65.00	68.30
SSC220AHL	SSC2102H
