SS HSS 4124 & HB78 Bushing Chains for Mud Collection Machine
HSS4124&HB78 stainless steel chain(mud collection machine)
|
GL Chain No |
Pitch |
Average Tensile Strength |
Ultimate Tensile Strength |
Weight Per Meter |
Bush Diameter |
Width Between Inner Plates |
Pin Diameter |
Pin Length |
Plate Dimension |
||||||||||||||
|
P |
KN |
KN/LB |
Kg/m |
D |
W |
d |
L1 |
L2 |
H |
T |
|||||||||||||
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
||||||||||||||||
|
SSHSS4124-OL |
103.20 |
133.00 |
119.70 |
10.0 |
43.7 |
37.0 |
14.48 |
35.8 |
42.8 |
44.0 |
6.0 |
||||||||||||
|
SSHB78 |
33.27 |
77.00 |
69.30 |
6.0 |
22.2 |
28.6 |
11.17 |
30.1 |
36.4 |
31.8 |
6.0 |
||||||||||||
|

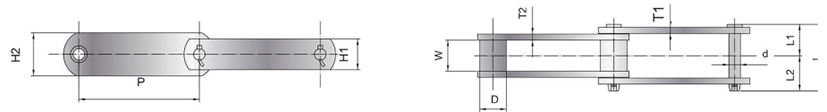

GL Chain No |
Pitch |
Average Tensile Strength |
Ultimate Tensile Strength |
Weight Per Meter |
Bush Diameter |
Width Between Inner Plates |
Pin |
Pin Length |
Outer Plate |
Inner Plate |
|||
|
P |
KN |
KN/LB |
Kg/m |
D |
W |
d |
L1 |
L2 |
H1 |
T1 |
H2 |
T2 |
|
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
||||
|
SSHSS4124- ST |
103.20 |
133.00 |
119.70 |
10.0 |
43.7 |
37.0 |
14.5 |
35.8 |
42.8 |
38.0 |
6.0 |
44.0 |
6.0 |
Chain for swage disposal
|
GL Chain No |
Pitch |
Average Tensile Strength |
Ultimate Tensile Strength |
Weight Per Meter |
Width Between Inner Plates |
Roller Diameter |
Pin Diameter |
Pin Diameter |
Plate Height |
Plate Thickness |
||||||||||||||
|
P |
KN |
KN/LB |
Kg/m |
b1 |
d1 |
C |
d2 |
Internal foramen |
L |
H |
T |
T1 |
||||||||||||
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|||||||||||||||
|
SSW152 |
152.40 |
85.47 |
77.0/17500 |
10.8 |
25.4 |
66.7 |
85.7 |
27.1 |
20.0 |
58.8 |
50.0 |
5.0 |
7.0 |
|||||||||||
GL has provided important water treatment chains for various water treatment equipment, which can be used in the production line of water treatment equipment including transit water treatment, sand grain sediment box, preliminary sedimentation and secondary sedimentation. In order to meet the functional requirements of different water treatment equipment, GL can not only provide water treatment chains made of stainless steel and special alloy steel, but also provide molded water treatment chains.The material can be 300,400,600 series stainless steel.
