SS Roller Chains wtih different Kinds of U Type Attachment

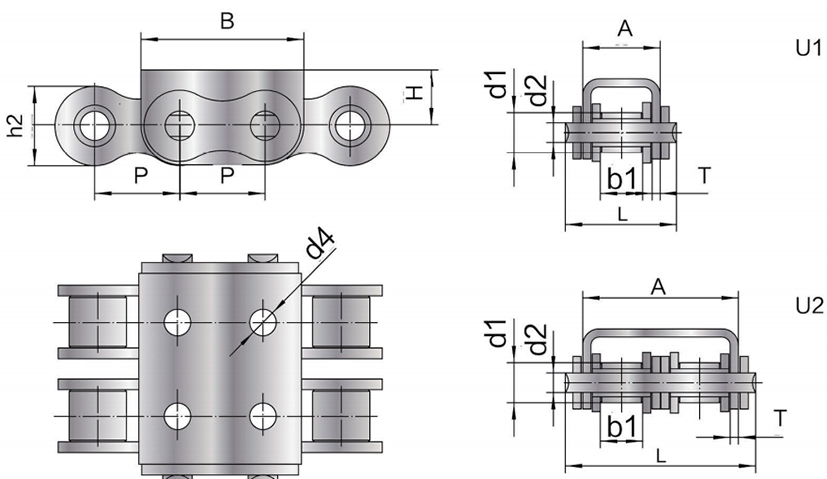

Roller chain with U type attachment
|
GL Chain No |
Pitch |
Width Between Inner Plates |
Roller Diameter |
Pin Diameter |
Pin Length |
Plate and Attachment Dimensions |
Ultimate Tensile Strength |
Weight Per Meter |
|||||
|
P |
b1 |
d1 |
d2 |
L |
h2 |
A |
B |
H |
d4 |
T |
Q min |
q |
|
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
KN |
Kg/m |
|
|
SS08B-U1 |
12.700 |
7.75 |
8.51 |
4.45 |
20.00 |
11.80 |
14.60 |
24.20 |
8.30 |
- |
1.60 |
12.60 |
1.13 |
|
SS08B-U2 |
12.700 |
7.75 |
8.51 |
4.45 |
34.30 |
11.80 |
28.40 |
24.20 |
8.30 |
- |
1.50 |
22.40 |
1.96 |
|
SS08B-U2F9 |
12.700 |
7.75 |
8.51 |
4.45 |
47.90 |
12.00 |
28.40 |
25.50 |
8.30 |
4.00 |
1.50 |
20.30 |
2.00 |
|
SS10B-U1 |
15.875 |
9.65 |
10.16 |
5.08 |
23.20 |
14.70 |
16.80 |
30.00 |
11.30 |
5.00 |
1.60 |
13.30 |
1.53 |
|
SS10B-U2 |
15.875 |
9.65 |
10.16 |
5.08 |
39.70 |
14.70 |
33.30 |
30.00 |
11.30 |
5.00 |
1.50 |
31.15 |
2.47 |
|
SS12B-U1 |
19.050 |
11.68 |
12.07 |
5.72 |
25.70 |
16.00 |
19.60 |
36.00 |
13.00 |
5.00 |
1.85 |
20.300 |
1.90 |
|
SS12B-U2 |
19.050 |
11.68 |
12.07 |
5.72 |
45.30 |
16.00 |
39.10 |
36.00 |
12.00 |
5.00 |
1.85 |
40.460 |
3.03 |
|
SS16A-U1 |
25.400 |
15.75 |
15.88 |
7.92 |
37.20 |
24.00 |
27.50 |
46.00 |
16.00 |
- |
2.42 |
39.690 |
3.88 |
|
SS16B-U1 |
25.400 |
17.02 |
15.88 |
8.28 |
39.70 |
21.00 |
29.05 |
49.00 |
15.40 |
6.00 |
1.60 |
40.600 |
3.73 |
|
SS16B-U2 |
25.400 |
17.02 |
15.88 |
8.28 |
71.70 |
21.00 |
60.93 |
49.00 |
16.20 |
- |
1.60 |
74.200 |
6.15 |
|
SS20B-F2 |
31.750 |
19.56 |
19.05 |
10.19 |
48.00 |
26.40 |
36.00 |
57.00 |
21.00 |
8.00 |
3.50 |
55.250 |
6.01 |
|
SS20B-U1 |
31.750 |
19.56 |
19.05 |
10.19 |
48.00 |
26.40 |
36.00 |
57.00 |
21.00 |
- |
3.50 |
55.250 |
6.00 |
|
SS24B-U1 |
38.100 |
25.40 |
25.40 |
14.63 |
61.60 |
33.20 |
47.00 |
72.60 |
28.00 |
10.00 |
4.50 |
104.000 |
10.88 |
We will try our best to create 100% satisfaction and 100% peace of mind for users and try to do our best to meet the needs of customers and create a brilliant tomorrow together! Continuous improvement is our self-discipline.Conveyor chain with U type attachment related information:
A. Material: chain plate: 40Mn, 45Mn, 40Cr, SUS304, SUS316
B. Length choice: 10 FT/Box, 5M/Box, 10M/Box
C. Product type: conveyor chains / industrial chains /Conveyor Chain
D. Pitch: 12.7mm, 15.875mm, 19.05mm, 25.4mm, 31.75mm, 38.1mm
E. MOQ: usually Min order qty is 100 meters, if your chain is not standard chain with standard U type attachment, our technical department will design it to development.
