Stock Bore Sprockets per American Standard
Maximum bores shown will accommodate standard keyseat and setscrew over keyseat.
Slightly larger bores are possible with no keyseat, shallow keyseat, or setscrew at angle to keyseat
Has recessed groove in hub for chain clearance.
Maximum bores shown will accommodate standard keyseat and setscrew over keyseat.
Slightly larger bores are possible with no keyseat, shallow keyseat, or setscrew at angle to keyseat
Maximum bores shown will accommodate standard keyseat and setscrew over keyseat.
Slightly larger bores are possible with no keyseat , shallow keyseat , or setscrew at angle to keyseat
Triple -Type B
|
No. Teeth |
Number |
De |
Type |
D1 |
|
A |
Weight Lbs. (Approx.) |
|
|
Min |
Max. |
|||||||
|
13 |
E35B13H |
1.750 |
B |
1/2 |
11/16 |
17/64 |
13/4 |
.50 |
|
14 |
E35B14H |
1.870 |
B |
1/2 |
7/8 |
11/4 |
13/4 |
.62 |
|
15 |
E35B15H |
1.990 |
B |
1/2 |
15/16 |
113/32 |
13/4 |
.78 |
|
16 |
E35B16H |
2.110 |
B |
1/2 |
15/16 |
115/32 |
13/4 |
.82 |
|
17 |
E35B17H |
2.230 |
B |
1/2 |
11/16 |
119/32 |
13/4 |
1.04 |
|
18 |
E35B18H |
2.350 |
B |
1/2 |
15/16 |
123/32 |
13/4 |
1.22 |
|
19 |
E35B19H |
2.470 |
B |
1/2 |
15/16 |
17/8 |
13/4 |
1.40 |
|
20 |
E35B20H |
2.590 |
B |
3/4 |
13/8 |
115/16 |
17/8 |
1.50 |
|
21 |
E35B21H |
2.710 |
B |
3/4 |
17/16 |
21/16 |
17/8 |
1.72 |
|
22 |
E35B22H |
2.830 |
B |
3/4 |
11/2 |
23/16 |
17/8 |
1.96 |
|
23 |
E35B23H |
2.950 |
B |
3/4 |
11/2 |
21/4 |
17/8 |
2.12 |
|
24 |
E35B24H |
3.070 |
B |
3/4 |
11/2 |
21/4 |
17/8 |
2.26 |
|
25 |
E35B25H |
3.190 |
B |
3/4 |
11/2 |
21/4 |
17/8 |
2.42 |
|
26 |
E35B26 |
3.310 |
B |
3/4 |
13/4 |
21/2 |
17/8 |
2.78 |
|
30 |
E35B30 |
3.790 |
B |
3/4 |
13/4 |
21/2 |
17/8 |
3.42 |
|
36 |
E35B36 |
4.510 |
B |
3/4 |
13/4 |
21/2 |
17/8 |
4.52 |
|
42 |
E35B42 |
5.230 |
B |
3/4 |
13/4 |
21/2 |
17/8 |
5.88 |
|
48 |
E35B48 |
5.950 |
B |
3/4 |
13/4 |
21/2 |
17/8 |
7.42 |
|
52 |
E35B52 |
6.430 |
B |
3/4 |
13/4 |
21/2 |
17/8 |
8.52 |
|
60 |
E35B60 |
7.380 |
B |
3/4 |
13/4 |
21/2 |
17/8 |
11.22 |
|
68 |
E35B68 |
8.340 |
B |
3/4 |
23/8 |
31/2 |
17/8 |
15.38 |
|
72 |
E35B72 |
8.810 |
B |
3/4 |
23/8 |
31/2 |
17/8 |
17.34 |
|
76 |
E35B76 |
9.290 |
B |
3/4 |
23/8 |
31/2 |
17/8 |
18.90 |
|
84 |
E35B84 |
10.250 |
B |
3/4 |
23/8 |
31/2 |
17/8 |
22.82 |
|
95 |
E35B95 |
11.560 |
B |
1 |
21/2 |
33/4 |
21/8 |
29.32 |
|
96 |
E35B96 |
11.680 |
B |
1 |
21/2 |
33/4 |
21/8 |
30.06 |
|
102 |
E35B102 |
12.400 |
B |
1 |
21/2 |
33/4 |
21/8 |
33.36 |
NOTE : Triple 35 stock sprockets with 25 teeth or less have Hardened teeth.
Maximum bores shown will accommodate standard keyseat and setscrew over keyseat.
Slightly larger bores are possible with no keyseat , shallow keyseat , or setscrew at angle to keyseat
GL offers sprockets with an emphasis on precision engineering and perfect quality. Our stock Pilot Bore hole (PB) plate wheel and sprockets are ideal for being machined to the bore which customers desire need as different shaft diamater.

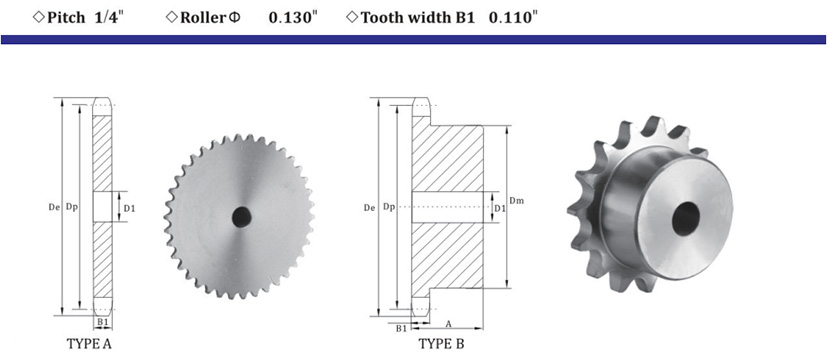

We offer Type A (hub-less) plate wheels from #25 (0.250 "), #35 (0.375 ") , #40 (0.500 ") till #240(3") pitches in stock. The finished plate wheels are some in stock.
We also offer Type B(hub) sprockets from #25 (0.250 "), #35 (0.375 "), #40 (0.500 "), #41 (0.500 "), #50 (0.625 ") , #50 (0.625 ") till #240(3") pitch in stock. The finished sprockets are some in stock.
Teeth of PB plate wheel and sprockets hardened are avilable.
Material are made of steel C45.
We also offer PB plate wheels and sprockets in stainless steel SS304 for these sizes.
