A/B Series Roller Chains, Heavy Duty, Straight Plate, Double Pitch

Our wide range of chain includes the most popular models such as the roller chain (single, double and triple) with straight side plates, the heavy series, and the most requested conveyor chain products, agricultural chain, silent chain, timing chain, and many other types that can be seen in the catalogue. In addition, we produce chain with attachments and to customer drawings and specifications.

Send email to us Download as PDF

Product Detail

Product Tags

A SERIES ROLLER CHAINS

Transmission Chains

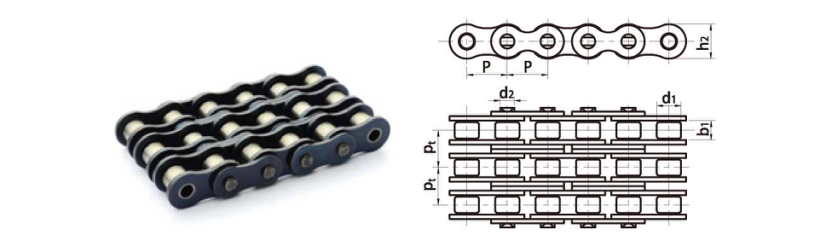

TECHNICAL PARAMETERS

GL Chain No.		Pitch	Roller dia.	Inside width	Pin dia.	Plate thickness	Height of inner Transverse plate pitch		Ultimate tensie strength	Weight approx.
ANSI	ISO	P	d1 (max)	bl (min)	d2 (max)	T	h2	Pt	Q	q
		mm	mm	mm	mm	mm	mm	mm	kN	kg/m
*25-1	04C	6.35	3.30	3.18	2.3	0.8	6		3.5	0.15
*35-1	06C	9.525	5.08	4.77	3.58	1.30	9	10.13	7.9	0.33
35-2 35-3									15.8 23.7	0.63 1.05
41-1	085	12.70	7.77	6.25	3.58	1.25	9.91		6.67	0.41
40-1	08A	12.70	7.92	7.85	3.98	1.50	12.07		13.90	0.66
40-2								14.38	27.80	1.30
40-3									41.70	1.96
50-1	10A	15.875	10.16	9.40	5.09	2.06	15.09		21.80	1.10
50-2 50-3								18.11	43.60 65.40	2.14 3.20
60-1	12A	19.05	11.91	12.57	5.96	2.44	18.10		31.30	1.53
60-2								22.78	62.60	3.00
60-3									93.90	4.50
80-1	16A	25.40	15.88	15.75	7.94	3.26	24.13		55.60	2.63
80-2 80-3								29.29	111.20 166.80	5.24 7.83
100-1	20A	31.75	19.05	18.90	9.54	4.00	30.17		78.00	4.03
100-2								35.76	174.00	8.02
100-3									261.00	12.00

Transmission Chains2

GL Chain No.		Pitch	Roller dia.	Inside width	Pin dia.	Plate thickness	Height of inner plate	Transverse pitch	Ultimate tensie strength .	Weight approx
ANSI	ISO	P	d1(max)	b1(min)	d2(max)	T	h2	Pt	Q	q
		mm	mm	mm	mm	mm	mm	mm	kN	kg/m
120-1	24A	38.10	22.23	25.22	11.11	4.80	36.20		125.00	5.94
120-2								45.44	250.00	11.84
120-3									375.00	17.69
140-1	28A	44.45	25.40	25.22	12.71	5.65	42.23		170.00	7.62
140-2								48.87	340.00	15.20
140-3									510.00	22.84
160-1	32A	50.80	28.58	31.55	14.29	6.45	48.26		223.00	10.20
160-2								58.55	446.00	20.25
160-3									669.00	30.31
180-1	36A	57.15	35.71	35.48	17.46	7.25	54.30		281.00	13.96
180-2								65.84	562.00	27.90
180-3									843.00	41.82
200-1	40A	63.50	39.68	37.85	19.85	8.00	60.33		347.00	16 90
200-2								71.55	694.00	33.80
200-3									1041.00	50.60
240-1	48A	76.20	47.63	47.35	23.81	9.50	72.39		500.00	22.90
240-2								87.83	1000.00	45.80
240-3									1500.00	68.70

B SERIES ROLLER CHAINS

Transmission Chains3

GL Chain No.	Pitch	Roller dia.	Inside width	Pin dia.	Plate thickness	Height of inner plate	Transverse pitch	Ultimate tensie strength	Weight approx.
ANSI ISO	P	d1(max)	b1(min)	d2(max)	T	h2	Pt	Q	q
	mm	mm	mm	mm	mm	mm	mm	kN	kg/m
03B-1	5	3.2	2.50	1.49		4.1		2.2	0.08
04B-1	6	4	2.8	1.85	0.6	5		3	0.11
05B-1 05B-2	8	5	3	2.31	0.8	7.1	5.64	5	0.19
								7.8	0.33
06B-1	9.525	6.35	5.72	3.28	1.3	8.2		9	0.41
06B-2 06B-3							10.24	16.9	0.77
								24.9	1.16
08B-1	12.7	8.51	7.75	4.45	1.6	11.81		17.80	0.74
08B-2 08B-3							13.92	31.10	1.47
								44.50	2.20
10B-1	15.875	10.16	9.65	5.08	1.7	14.73		22.20	0.95
10B-2 10B-3							16.59	44.50	1.88
								66.70	2.81
12B-1	19.05	12.07	11.68	5.72	1.85	16.13		28.90	1.25
12B-2							19.46	57.80	2.45
12B-3								86.70	3.65
16B-1	25.40	15.88	17.02	8.28	4.09/3.10	21.08		60.00	2.90
16B-2							31.88	106.00	5.85
16B-3								160.00	8.75
20B-1	31.75	19.05	19.56	10.19	4.60/3.60	26.42		95.00	4.16
20B-2 20B-3							36.45	170.00	8.25
								250.00	12.00

Transmission Chains4

GL Chain No.	Pitch	Roller dia.	Inside width	Pin dia.	Plate thickness	Height of inner plate	Transverse pitch	Ultimate tensie strength	Weight approx.
ANSI ISO	P	d1(max)	b1(min)	d2(max)	T	h2	Pt	Q	q
	mm	mm	mm	mm	mm	mm	mm	kN	kg/m
24B-1	38.10	25.40	25.40	14.63	5.80/4.80	33.40		160.00	7.41
24B-2							48.36	280.00	14.75
24B-3								425.00	22.10
28B-1	44.45	27.94	30.99	15.90	7.50/6.50	37.08		200.00	9.36
28B-2							59.56	360.00	18.52
28B-3								530.00	27.70
32B-1	50.80	29.21	30.99	17.81	7.00/6.00	42.29		250.00	9.94
32B-2							58.55	450.00	19.60
32B-3								670.00	29.26
40B-1	63.50	39.37	38.10	22.89	8.50/7.50	52.96		355.00	17.17
40B-2							72.29	630.00	34.10
40B-3								950.00	51.20
48B-1	76.20	48.26	45.72	29.24	11.70/10.00	63.88		560.00	25.34
48B-2							91.21	1000.00	50.35
48B-3								1500.00	75.50
56B-1	88.90	53.98	53.34	34.32	1.35/12	77.85		850.00	38.02
56B-2							106.60	1600.00	76.00
64B-1	101.60	63.50	60.96	39.40	15/13	90.17		1120.00	48.80
64B-2							119.89	2000.00	96.60
72B-1	114.30	72.39	68.58	44.48	17/15	103.63		1400.00	63.50
72B-2							136.27	2500.00	126.50

SHORT PITCH HEAVY DUTY ROLLER CHAINS
Transmission Chains5

GL Chain No.		Pitch	Roller dia.	Inside width	Pin dia.	Plate thickness	Height of inner plate	Transverse pitch	Ultimate tensie strength	Weight approx.
ANSI	ISO	P	d1(max)	b1(min)	d2(max)	T	h2	Pt	Q	q
		mm	mm	mm	mm	mm	mm	mm	kN	kg/m
50H-1	10AH	15.875	10.16	9.40	5.09	2.44	15.09		21.80	1.30
50H-2								19.60	43.60	2.58
50H-3									65.40	3.85
60H-1	12AH	19.05	11.91	12.57	5.96	3.26	18.10		31.30	1.87
60H-2								26.11	62.60	3.71
60H-3									93.90	5.54
80H-1	16AH	25.40	15.88	15.75	7.94	4.00	24.13		55.60	3.10
80H-2								32.59	111.20	6.10
80H-3									166.80	9.10
100H-1	20AH	31.75	19.05	18.90	9.54	4.80	30.17		87.00	4.64
100H-2								39.09	174.00	9.14
100H-3									261.00	13.64
120H-1	24AH	38.10	22.23	25.22	11.11	5.65	36.20		125.00	6.50
120H-2								48.87	250.00	12.80
120H-3									375.00	19.10
140H-1	28AH	44.45	25.40	25.22	12.71	6.40	42.23		170.00	8.30
140H-2								52.20	340.00	16.30
140H-3									510.00	24.30
160H-1	32AH	50.80	28.58	31.55	14.29	7.20	48.26		223.00	11.07
160H-2								61.90	446.00	21.97
160H-3									669.00	32.87
180H-1	36AH	57.15	35.71	35.48	17.46	8.00	54.30		281.00	14.90
180H-2								69.16	562.00	29.56
180H-3									843.00	44.22
200H-1	40AH	63.50	39.68	37.85	19.85	9.50	60.33		347.00	20.00
200H-2								78.31	694.00	39.50
200H-3									1041.00	59.00
240H-1	48AH	76.20	47.63	47.35	23.81	13.00	72.39		500.00	30.00
240H-2								101.22	1000.00	59.50
240H-3									1500.00	89.00

SHORT PITCH STRAIGHT ROLLER CHAINS(A SERIES)

Transmission Chains6

GL Chain No.		Pitch	Roller dia.	Inside width	Pin dia.	Plate thickness	Plate depth	Transverse pitch	Pin length	Ultimate tensie strength	Weight approx.
ANSI	ISO	P	d1(max)	b1(min)	d2(max)	T	h2	Pt	L	Q	q
		mm	mm	mm	mm	mm	mm	mm	mm	kN	kg/m
C40-1	C08A	12.70	7.92	7.85	3.98	1.50	12.07		17.80	13.90	0.75
C40-2								14.38	32.30	27.80	1.47
C40-3									48.70	41.70	2.19
C50-1	C10A	15.875	10.16	9.40	5.09	2.05	15.09		21.80	21.80	1.24
C50-2								18.11	39.90	43.60	2.44
C50-3									57.90	65.40	3.64
C60-1	C12A	19.05	11.91	12.57	5.96	2.42	18.10		26.80	31.30	1.76
C60-2								22.78	49.60	62.60	3.53
C60-3									72.40	93.90	5.28
C80-1	C16A	25.40	15.88	15.75	7.94	3.23	24.13		33.50	55.60	2.97
C80-2								29.29	62.70	111.20	5.90
C80-3									91.90	166.80	8.85
C100-1	C20A	31.75	19.05	18.90	9.54	4.00	30.17		41.10	87.00	4.58
C100-2								35.76	77.00	174.00	9.13
C100-3									113.00	261.00	13.68
C120-1	C24A	38.10	22.23	25.22	11.11	4.80	36.20		50.50	125.00	6.80
C120-2								45.44	96.30	250.00	13.55
C120-3									141.70	375.00	20.30
C140-1	C28A	44.45	25.40	25.22	12.71	5.60	42.23		54.90	170.00	8.50
C140-2								48.87	103.60	340.00	16.95
C140-3									152.40	510.00	25.40
C160-1	C32A	50.80	28.58	31.55	14.29	6.40	48.26		65.50	223.00	11.60
C160-2								58.55	124.20	446.00	23.10
C160-3									182.90	669.00	34.60
C180-1	C36A	57.15	35.71	35.48	17.46	7.20	54.30		74.28	281.00	15.20
C180-2								65.84	140.12	562.00	29.70
C180-3									205.96	843.00	45.30
C200-1	C40A	63.50	39.68	37.85	19.85	8.00	60.33		80.20	374.00	18.60
C200-2								71.55	151.75	694.00	36.50
C200-3									223.30	1041.00	55.60

SHORT PITCH STRAIGHT ROLLER CHAINS(B SERIES)

GL Chain No.	Pitch	Roller dia.	Inside width	Pin dia.	Plate thickness	Plate depth	Transverse pitch	Pin length	Ultimate tensie strength	Weight approx.
ANSI ISO	P	d1(max)	b1(min)	d2(max)	T	h2	Pt	L	Q	q
	mm	mm	mm	mm	mm	mm	mm	mm	kN	kg/m
C08B-1	12.7	8.51	7.75	4.45	1.60	11.81		17.00	17.80	0.80
C08B-1							13.92	31.00	31.10	1.58
C08B-1								44.90	45.50	2.36
C10B-1	15.875	10.16	9.65	5.08	1.70	14.73		19.60	22.20	1.01
C10B-2							16.59	36.20	44.50	2
C10B-3								52.80	66.70	2.99
C12B-1	19.05	12.07	11.68	5.72	1.85	16.13		22.70	28.90	1.31
C12B-2							19.46	42.20	57.80	2.60
C12B-3								61.70	86.70	3.89
C16B-1	25.40	15.88	17.02	8.28	4.0/3.0	21.08		36.10	60	2.97
C16B-2							31.88	68.00	106	5.89
C16B-3								99.90	160	8.81
C20B-1	31.75	19.05	19.56	10.19	4.5Z3.5	26.42		43.20	95	4.12
C20B-2							36.45	79.70	170	8.16
C20B-3								116.10	250	12.20
C24B-1	38.10	25.40	25.40	14.63	6.0/4.8	33.40		53.40	160	7.52
C24B-2							48.36	101.80	280	14.87
C24B-3								150.20	425	22.22
C28B-1	44.45	27.94	30.99	15.90	7.5/6.0	37.05		65.10	200	9.87
C28B-2							59.56	124.70	360	19.54
C28B-3								184.30	530	29.21
C32B-1	50.80	29.21	30.99	17.81	7.0/6.35	42.29		67.40	250	10.53
C32B-2							58.55	126.00	450	20.78
C32B-3								184.50	670	31.03
C40B-1	63.50	39.37	38.10	22.89	8.0/8.4	52.96		82.50	355	17.30
C40B-2							72.29	154.79	630	34.50
C40B-3								227.08	950	51.90
C48B-1	76.20	48.26	45.72	29.24	9.9/11.8	63.88		99.00	560	25.90
C48B-2							91.21	190.21	1000	51.20
C48B-3								281.42	1500	76.25

DOUBLE PITCH TRANSMISSION ROLLER CHAINS

Transmission Chains7

GL Chain No.		Pitch	Roller dia.	Inside width	Pin dia.	Plate thickness	Height of inner plate	Ultimate tensie strength	Weight approx.
ANSI	ISO	P	d1(max)	b1(min)	d2(max)	t/T	h2	Q	q
ANSI	ISO	mm	mm	mm	mm	mm	mm	kN	kg/m
A2040	208A	25.40	7.92	7 85	3.98	1.50	12.07	13.90	0.42
A2050	21OA	31.75	10.16	9.40	5.09	2.06	15.09	21.80	0.70
A2060	212A	38.10	11.91	12.57	5.96	2.44	18.10	31.30	1.00
A2080	216A	50.80	15.88	15.75	7.94	3.26	24.13	55.60	1.76
A2100	220A	63.50	19.05	18.90	9.54	4.00	30.17	87.00	2.55
A2120	224A	76.20	22.23	25.22	11.11	4.80	36.20	125.00	4.06
A2140	228A	88.90	25.40	25.22	12.71	5.60	42.23	170.00	5.12
A2160	232A	101.60	28.58	31.55	14.29	6.40	48.26	223.00	7.02
A2040H	208AH	25.40	7.92	7.85	3.98	2.03	12.07	13.90	0.56
A2050H	210AH	31.75	10.16	9.40	5.09	2.44	15.09	21.80	0.85
A2060H	212AH	38.10	11.91	12.57	5.96	3.25	18.10	31.30	1.44
A2080H	216AH	50.80	15.88	15.75	7.94	4.00	24.13	55.60	2.25
A2100H	220AH	63.50	19.05	18.90	9.54	4.80	30.17	87.00	3.6
A2120H	224AH	76.20	22.23	25.22	11.11	5.60	36.20	125.00	5.12
A2160H	232AH	101.60	28.58	31.55	14.29	7.20	48.26	223.00	7.94
	208B	25.40	8.51	7.75	4.45	1.60	11.81	17.80	0.52
	210B	31.75	10.16	9.65	5.08	1.70	14.73	22.20	0.63
	212B	38.10	12.07	11.68	5.72	1.85	16.13	28.90	0.78
	216B	50.80	15.88	17.02	8.28	4.10/3.10	21.08	60.00	1.88
	220B	63.50	19.05	19.56	10.19	4.60/3.60	26.42	95.00	2.65
	224B	76.20	25.40	25.4	14.63	5.80/4.80	33.40	160.00	4.77
	228B	88.90	27.94	30.99	15.90	7.50/6.50	37.08	200.00	6.30
	232B	101.60	29.21	30.99	17.81	7.00/6.00	42.29	250.00	6.79

GL transmission chain made as ISO/BS/ANSI standard,the excellent reception that comes from –appreciated for its quality, economic– has resulted in bigger and bigger output.

As regards manufacturing materials, GL chains are offered in steel and stainless steel (for working in corrosive environments, with food, chemical products and pharmaceuticals), nickel plated steel (suitable for outdoor work), zinc plated or galvanised steel.

During the manufacturing process, we apply the most stringent controls on the link plate contours, polishing with shot peening, pre-stressing and hardness tests in order to ensure good quality.
